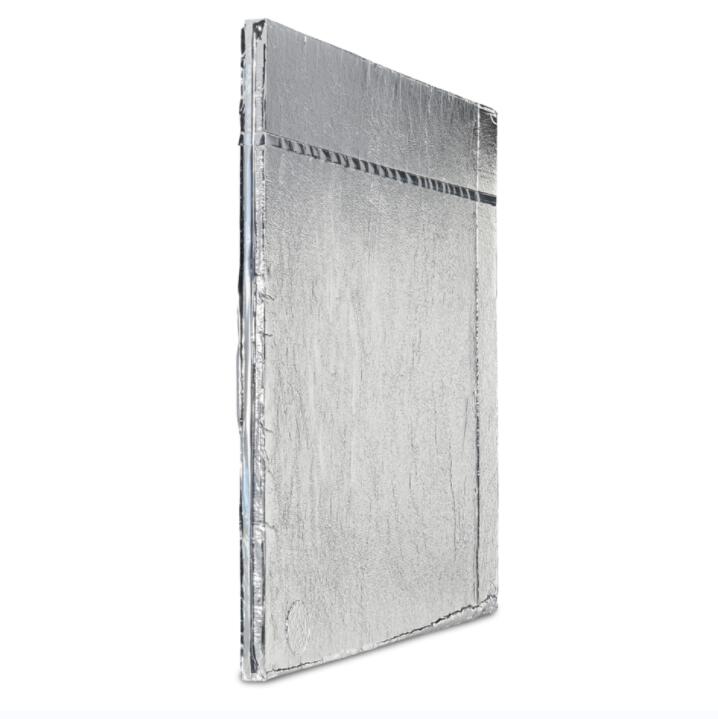

Fiberglass Core Vacuum Insulation Panel

Vacuum insulation panel (VIPs)based on fiberglass core material,it is mainly consists of three parts: fiberglass core material, getter and high barrier film.

With an excellent initial thermal conductivity 0.0013-0.002W/m.K, the thermal resistance of our vacuum insulation panel based on fiberglass core material is ten times higher than conventional insulation material and even more.

Compared with traditional PU insulation materials, it is more energy-saving and environment-friendly vacuum insulation panel contains no ozone depleting substances in its production process.

Features

Excellent initial thermal conductivity 0.0013-0.002W/m.K

Compared with fumed silica core material vacuum insulation panel, more lower cost and lower thermal conductivity

Comply with European environmental standards

Avaliable for customized various insulation box

Thickness  5-50mm

Width 50-1000mm

Length 50-1800mm

Application

Widely used in refrigerators, freezers, refrigerated trucks, cold storages, temperature controlled packaging, c

ooler box, medical insulation box,vending machines,ice storage tanks, etc.
