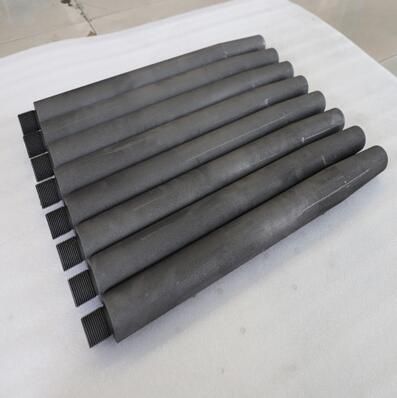

Graphite Electrode Rod

Graphite electrode rod is a conductive material made of natural graphite or graphite coke. It has the characteristics of heat resistance, corrosion resistance and good electrical conductivity. It is an important electrode material.

Application fields

The main application fields of graphite electrode rods include metallurgy, chemical industry, carbon materials and other fields.

1. In the field of metallurgy, graphite electrode rods are important components of smelting equipment such as electric arc furnaces and induction furnaces. At present, most electric arc furnaces at home and abroad use graphite electrode rods as the main electrode material for steelmaking and ironmaking.

2. In the chemical industry, graphite electrode rods are widely used in electrolytic cells, electric heating furnaces, halogen electrolysis and other fields. Its good corrosion resistance can ensure the stable operation of the equipment.

3. In the field of carbon materials, graphite electrode rods are used as important raw materials to manufacture high-end carbon materials, such as graphite electrodes, carbon fibers, etc.

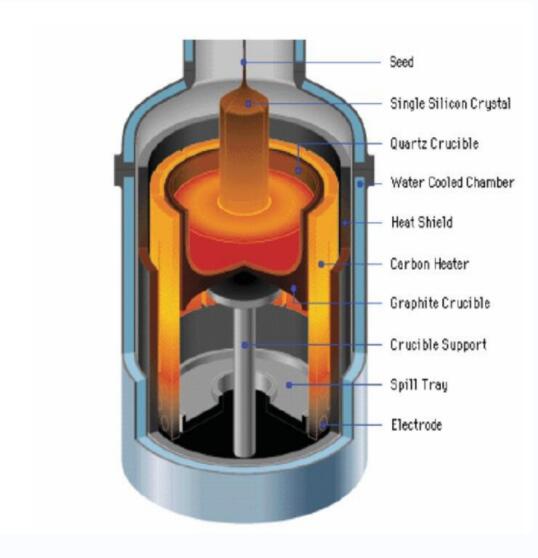

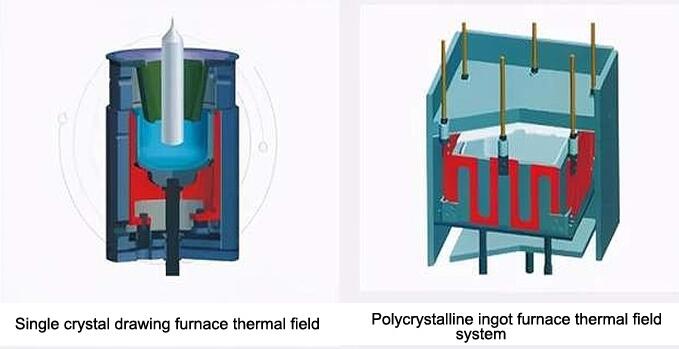

4. Graphite electrode rods specially designed for monocrystalline silicon manufacturers and have production patents

Specification

Specifications and allowable deviations of graphite electrodes

Allowable current capacity of graphite electrode

Graphite electrode surface quality

1. There should be no more than two defects or holes on the electrode surface, and their size should not exceed the following table. ​

2. There are no transverse cracks on the electrode surface. There are longitudinal cracks with a width of 0.3-1.0mm. The length is not greater than 5% of the electrode circumference. Longitudinal cracks with a width of not less than 0.3mm are not included. ​

3. The black skin area on the electrode surface has a width less than 1/10 of the electrode circumference and a length less than 1/3 of the electrode length.
