Vacuum Insulation Panel

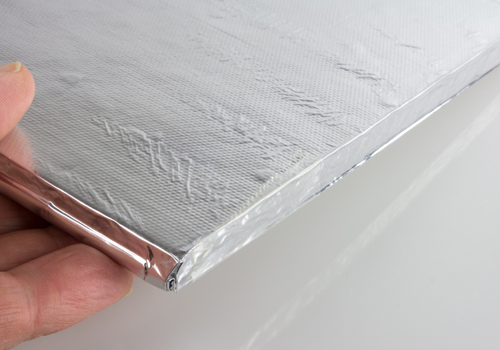

Vacuum Insulation Panel (VIP)

Specification

VIP Vacuum Insulation Panel is composed of insulated core materials(micro glassfiber or fumed silica), getter and barrier film. which has the advantages of light weight, low thermal conductivity, good elasticity, non-toxic, non-polluting, non-flammable and so on. It is an ideal choice for thermal insulation and sound-absorbing materials.

Click directly to send a message via WhatsApp

Inquire

A^-A⁺

Description Inquire

Product Description:
The product is composed of insulated core materials(micro glassfiber or fumed silica), getter and barrier film. which has the advantages of light weight, low thermal conductivity, good elasticity, non-toxic, non-polluting, non-flammable and so on. It is an ideal choice for thermal insulation and sound-absorbing materials.
As the most advance insulation material, VIP are widely used in construction (internal and external wall insulation),
aerospace, navigation, automobiles, home appliances (refrigerator insulation), logistics cold chain, cold storage freezer and other industries.

Product Sepecification:

Thermal Conductivity(mw/m.k)	≤4.5，≤3.5，≤2.5，≤2，≤1.8，≤1.6
Density(kg/m³)	240~320kg/m³
Inflation Rate (punctured %)	≤10
Thickness(mm)	2~40mm
Minimum Size	50mm*50mm
Maximum Size(mm)	1140mm*1800mm
Compression Strength( t/m²)	10
Service Life (years)	≥10
