Vacuum Insulation Panel

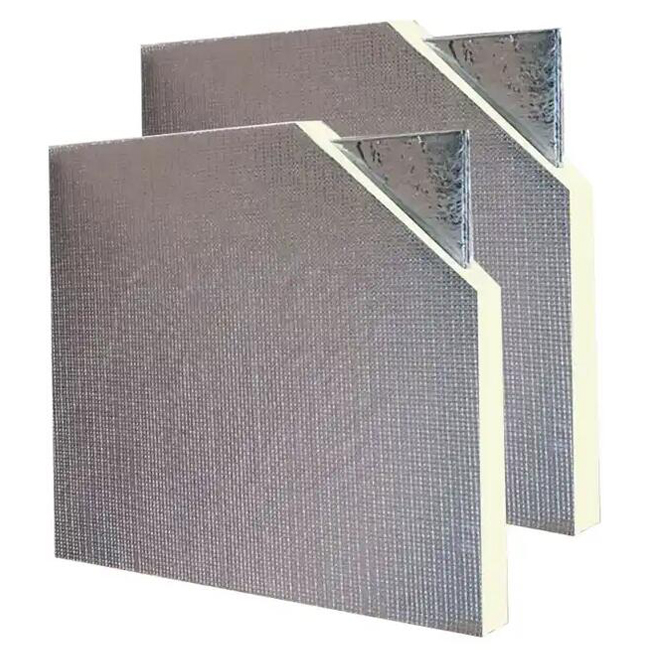

Polyurethane Vacuum Insulation Panel (PU-VIPs)

Description Inquire

Polyurethane vacuum insulation panels (PU-VIPs) are an innovative insulation material with a moldable appearance, thermal insulation properties and high resistance to mechanical damage. Extra large sizes can be customized according to customer requirements.

Technical Parameters

Geometry	Rectangular and various special shapes
density	100~200kg/m³ (according to the actual ratio of VIP and PU)
Thermal Conductivity	≤0.0045W/(m.K)
Maximum size (length × width)	1000mm×1800mm
Max Thickness	100mm

Features

Easy to install and stick, the surface is flatter;

Protect VIP from external damage and make it safer to use;

Thermal insulation performance is better than traditional insulation materials;

High compressive strength

Molding with accurate size, low customization cost

Comply with European environmental standards

Composite panels of different sizes, forms and thicknesses can be manufactured to meet different customer needs;

Applications

Energy-saving home appliances (refrigerators/freezers/vending machines/electric water heaters), cold chain transport insulated boxes,refrigerated insulated boxes/refrigerated trucks, energy-saving buildings,etc.
